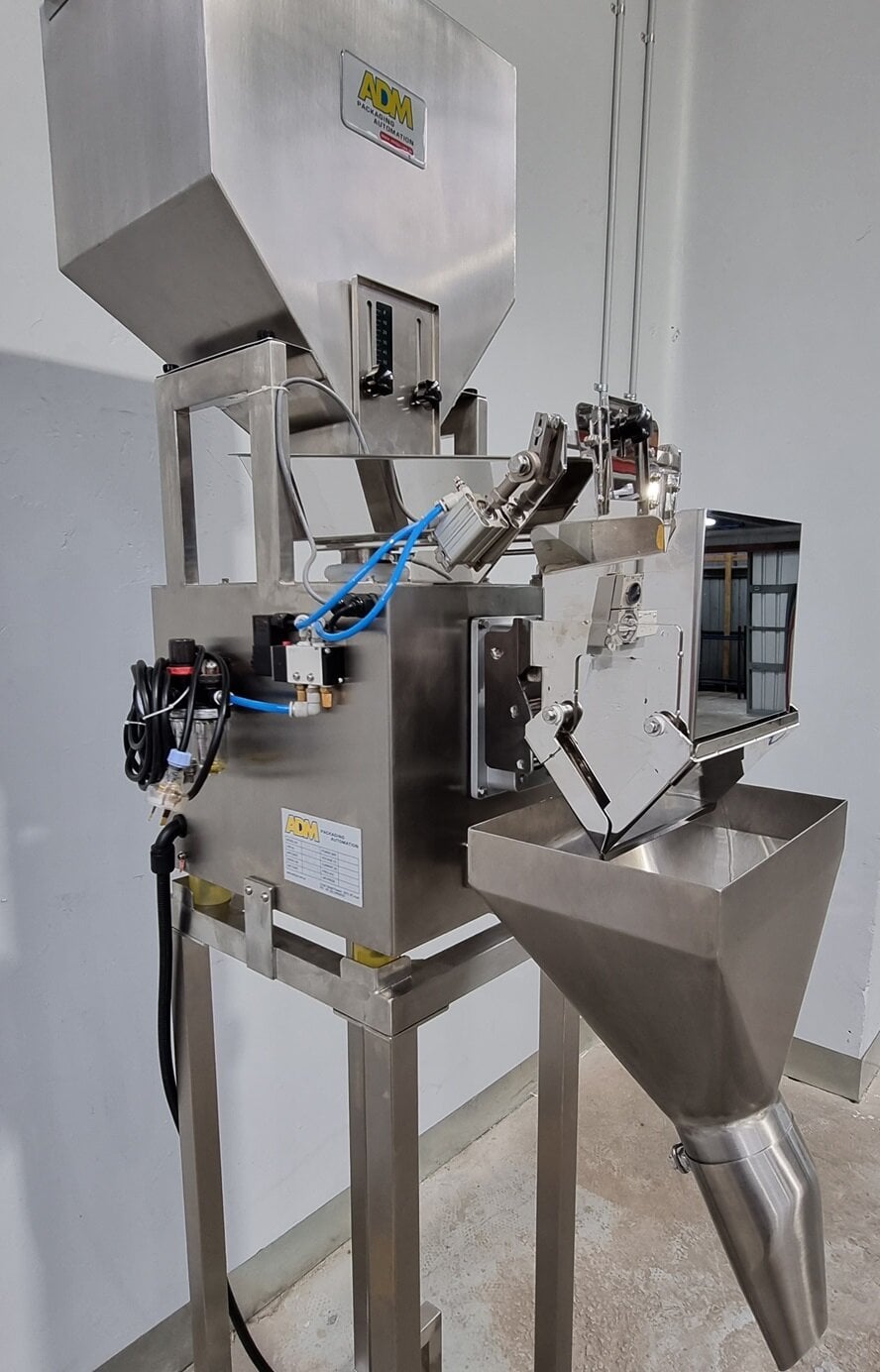

1 Head Linear Weigher

Single head weigher is great for entry level weighing and small production runs. The 1 Head Linear Weigher offers good weight accuracy and speeds. ADM offer both vibration type and belt drive type weighers. These weighers can work with small granula free flow to the more difficult to flow products as stated below. The weight range based on selected model can achieve weights from 40g-12,000g (12kg)

Vibration type feeder 5L: Ideal for free flowing, lightweight product like sugar, salt, seed, rice, milk powder, coffee and seasoning powders
Belt drive type feeder 16L: Ideal for diced cauliflower, broccoli, onion slices, pitted dates and other semi flow products.


  • High precision digital load cell
  • PLC based system control
  • Colour touch screen
  • Stainless steel contruction
  • Tool-less removale of weigh buckets and vibration pans
  • IP65 grade construction


ModelADM-MX1.2-Vib-5LADM-MX1.2 Belt-16L
Weighing Range40-3000g400-12000 g
Weighing Accuracy0.5-3 g1-12 g
Weighing Speed10-30 wpm5-10 wpm
Hopper Volume5000 ml16000 ml
Preset Programs20
Max, Mix Products1
Power750 w250 w
Power supply240V, 50Hz, 5A240V, 50Hz, 1.2A
Machine Size890L, 580W, 950H mm1150L, 750W, 1100H mm
