TOTAL PACKAGING SOLUTIONS
ADM Case Sealer
ADM Packaging Automation offer a range of case sealers and case erectors for your end of line needs. They are available to suit most applications offering different constructions for any box orientations. They include side drive, top and bottom drives, semi and automatic designs as well simple winding adjustment to fine tune required heights and widths. The case sealing and erecting systems are built with least moving parts to minimise on maintenance and spares for the long production runs. For safety, all our case sealers and case erectors undergo a risk assessment as part of AS4024 for safe operation.

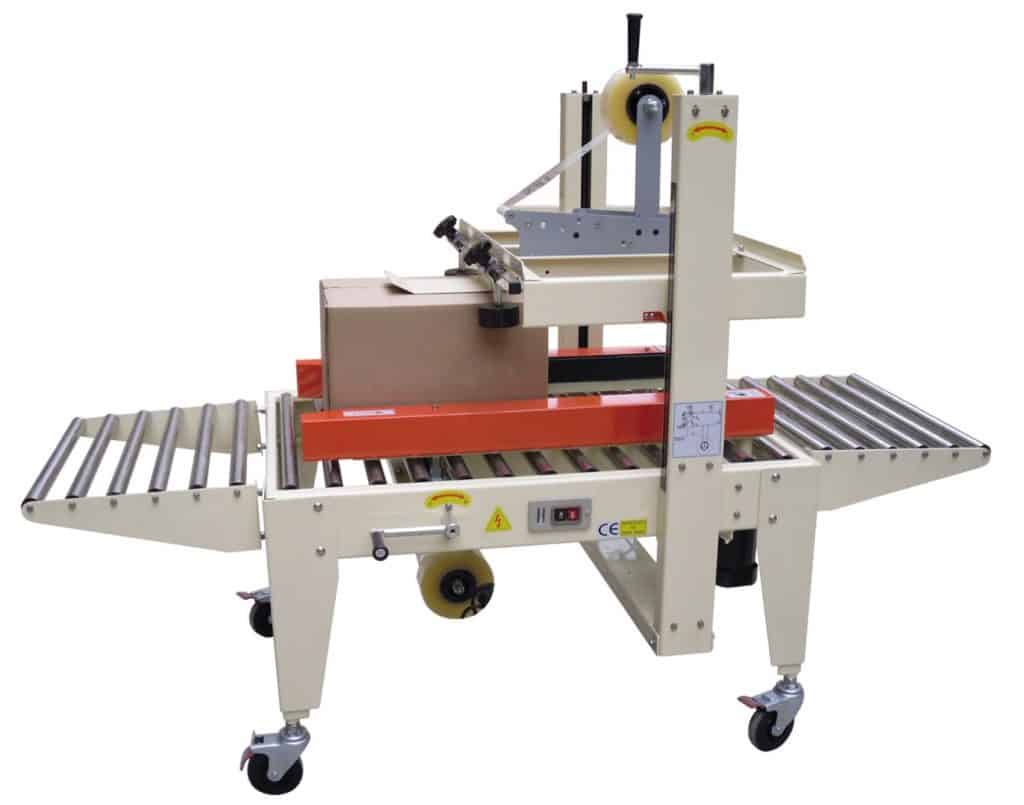

ADM - A Series Case Sealers
The A Series case sealers can be found in most food processing and packaging plants performing repetition sealing applications. Generally used as end of line systems, though they are not limited in this field. They are used in other fields that apply to transport, mail, mining, pharmaceutical, beverage, hospitality, fashion, cosmetics, warehouse, franchises and more.
Specifications
| Model | ADM-A30_ | ADM-A50_ | ADM-A60_ |
| Belt Drive | 2 x Side Drive | 2 x Side Drive | 2 x Top, 2 x Bottom |
| Safety | EM stop | EM stop | EM stop |
| Carton Size | L130plus×W80-300×H90-300mm | L150plus×W150-500×H120-520mm | L150plus×W150-500×H120-520mm |
| Speed | 20cpm | 15cpm | 15cpm |
| Tape Width | 48mm (S=Standard), 60mm, 75mm (W=Wide Optional) | ||
| Table Height | Mim.560mm, Max.760mm | ||
| Machine Size | L1020lus×W850×H1390mm | L1020×W850×H1390mm | L1020×W850×H1480mm |
| Power supply | 240V 50Hz 0.3kW | 240V 50Hz 0.3kW | 240V 50Hz 0.4kW |
| Weight | 130kg | 130kg | 130kg |
ADM - B Series Case Sealers
The B Series case sealers are more sophisticated systems offering automatic approach to case sealing as well as complexity. This includes automatic height adjustment, side sealing and automation case closing as options. The are used in plants where automation and efficiency is a priority. They can be located in many industries including food, transport, mail, mining, pharmaceutical, beverage, hospitality, fashion, cosmetics, warehouse, franchises and more.
Specifications
| Model | ADM-A30_ | ADM-A50_ | ADM-A60_ |
| Belt Drive | 2 x Side Drive | 2 x Side Drive | 2 x Top, 2 x Bottom |
| Safety | EM stop | EM stop | EM stop |
| Carton Size | L130plus×W80-300×H90-300mm | L150plus×W150-500×H120-520mm | L150plus×W150-500×H120-520mm |
| Speed | 20cpm | 15cpm | 15cpm |
| Tape Width | 48mm (S=Standard), 60mm, 75mm (W=Wide Optional) | ||
| Table Height | Mim.560mm, Max.760mm | ||
| Machine Size | L1020lus×W850×H1390mm | L1020×W850×H1390mm | L1020×W850×H1480mm |
| Power supply | 240V 50Hz 0.3kW | 240V 50Hz 0.3kW | 240V 50Hz 0.4kW |
| Weight | 130kg | 130kg | 130kg |
