Auger Screw Conveyor

Features

  • Custom made lengths and feed rates
  • Positive feed drive for products conveyed
  • Stainless steel barrel driven via an electric motor
  • Stainless steel construction for durability and food safety
  • Suitable for fine, coarse, dense or fluid based products
  • Easy to clean

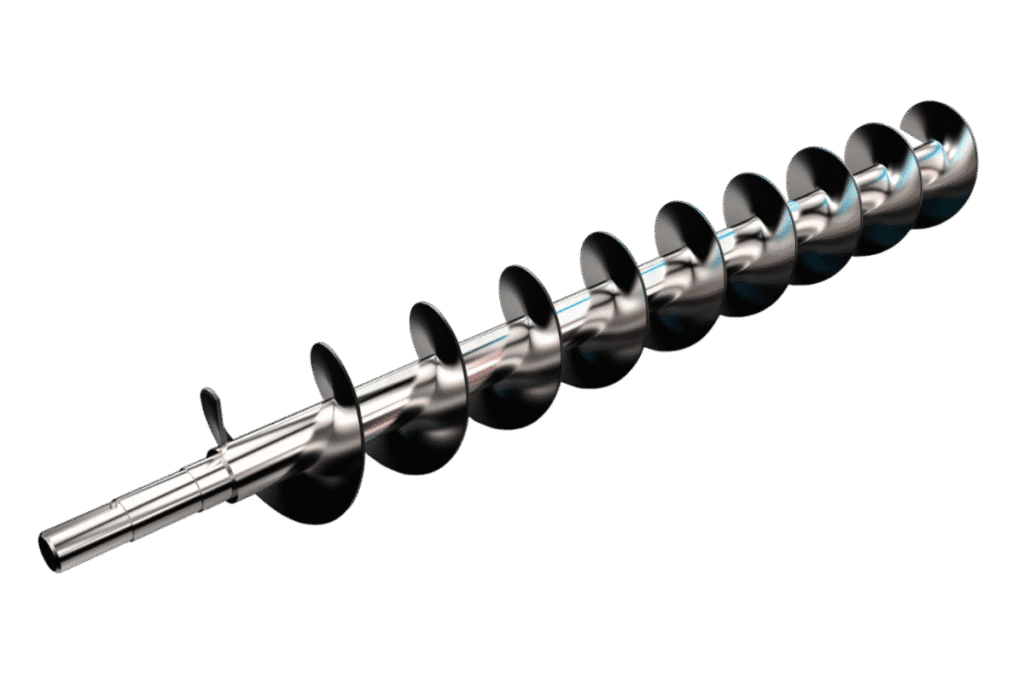

The ADM-Series Auger Screw Conveyor is constructed from stainless steel for hygienic and sanitary applications. It offers a positive feed drive for raw materials that require conveying to the processing area. The Auger Screw Conveyor rotates inside an enclosed stainless steel barrel and is driven via an electric motor. It is supplied with a hopper to offer a constant product feed to the Auger Screw. It is mounted on a moveable stand with castor wheels for easy relocation and cleaning access.

The Auger Screw Conveyor can be custom-made to various lengths and feed rates with optional hopper sizes. It is suitable for all fine and coarse products (like beans, flour, powder and rice), dense sticky products and fluid based products.

Specifications

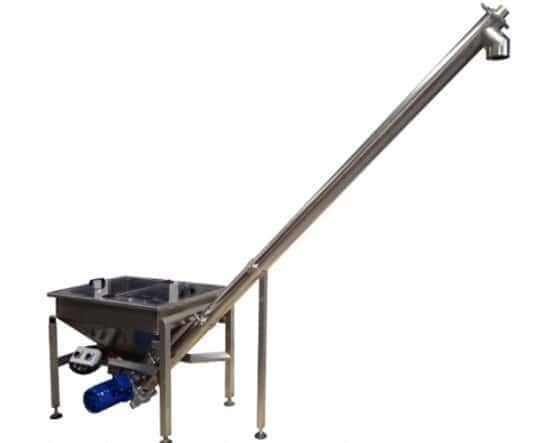

ModelADM-S2-2K-1.8ADM-S2-3K-1.8ADM-S2-5K-1.8
TypeRound BarrelRound BarrelRound Barrel
Hopper size100 litre200 litre200Litre
Lift CapacityUp to 2 m3 / hrUp to 3 m3 / hrUp to 5 m3/hr
Power supply415V, 50Hz, 0.6kW415V, 50Hz, 0.8kW415V, 50Hz, 1.3kW
Discharge height1.8m or custom1.8m or custom1.8m or custom
Tube size101mm o/d114mm o/d141mm o/d
Option 1Full Control boxFull Control boxFull Control box
Option 2Level sensorLevel sensorLevel sensor



Specifications

ModelADM-AS-3k-2.2ADM-AS-3k-2.6
TypeRound BarrelRound Barrel
Hopper size230 litre230 litre
Lift CapacityUp to 3 m3 / hrUp to 3 m3 / hr
Power supply415V, 50Hz, 1.1kW415V, 50Hz, 1.1kW
Discharge heightApprox 2.2mApprox 2.6m
Tube size114mm o/d114mm o/d
Control Box& sensorStandardStandard


Specifications

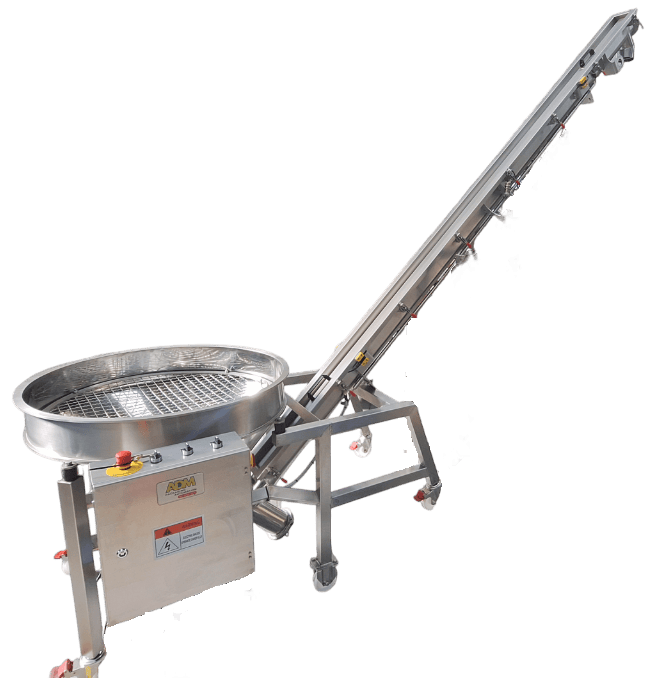

Model ADM-U2-3K-2.6 ADM-U2-5K-2.6
Type Half barrel removable Half barrel removable
Hopper size 200 litre 200 litre
Lift Capacity Up to 3 m3 / hr Up to 5 m3 / hr
Power supply 415V, 50Hz, 1.0kW 415V, 50Hz, 1.5kW
Discharge height 2.6m or custom 2.6m or custom
Tube size 114mm o/d 141mm o/d
Option 1 Full Control box Full Control box
Option 2 Level sensor Level sensor
Option 3 Motor location Top or bottom Top or bottom
