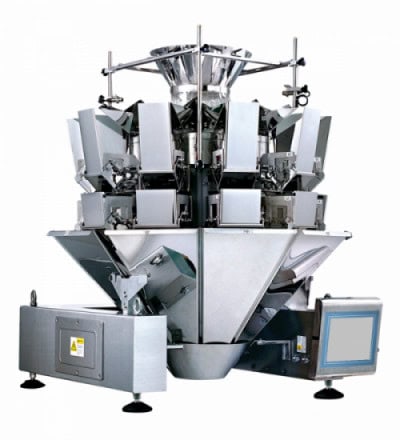

10 Head Combination Weigher

The Ten head combination weighers is a great choice and value for money for production plants with a big range of skews and medium runs. Speed is important but not critical. Combination weighers are best suited to weigh small to large products that linear weighers cannot achieve. They offer reasonable speeds with great weight accuracy. The weigher is bested combined with our ADM-X240 VFFSADM DP3 Series Pouch FillerXD20 Pouch Filler,  inline jar fillers and more.

  • Vibration type feeder: Ideal for free flow of small to large products such as sugar, salt, seed, rice, milk powder, coffee, seasoning powders diced cauliflower, broccoli, onion slices, pitted dates and other difficult to flow products.
  • Screw type feeder: Ideal for difficult to flow products such as diced meat, poultry, etc.
  • Free Flow Powders: Sugar, Salt, Spices, Milk powder, various sorts of powders, etc.
  • Granules & Seeds: Coffee beans, Rice, Sesame Seeds, Small Granules etc.
  • Dry & Processed Foods: Snack foods, Cereal & Health Foods, Confectionery, Biscuits & Bakery, Pasta, Grated Cheese, Nuts, Dried fruits, Pet Food
  • Non Food: Fasteners, plumbing parts, plastic, etc

Features

  • Stagger dump
  • Digital sensors enhance the speed, precision and anti-jamming capability
  • SS Frame with IP65 protection, design allows for easy to assembly and cleaning.
  • Compatibility with packaging machines.
  • User-friendly interface
  • Combining high speed with high accuracy
  • Optional timing hopper, printer output

Specifications

Model ADM-MA10-1.6L ADM-MA10-2.6L
Weighing Range 10-1000 g (3000g max) 10-1500 g (3000g max)
Weighing Accuracy 0.1 – 1.5 g 0.1 – 1.5 g
Speed Up to 70 Bags/min Up to 70 Bags/min
Bucket Volume 1.6 Litre 2.6 Litre
Structure Stainless Steel
Drive Step Motor
Preliminary Program 99 Sets
Display Screen 10.4 inch touch screen
Power supply 240V , 50Hz, 1500W
Weight 300 kg 350 kg
Optional – Dimple ADM-MA10D-1.6L ADM-MA10D-2.6L
Optional SS 316 grade
Optional Timing Hopper / Rotary top cone / Printer
